FEATURES

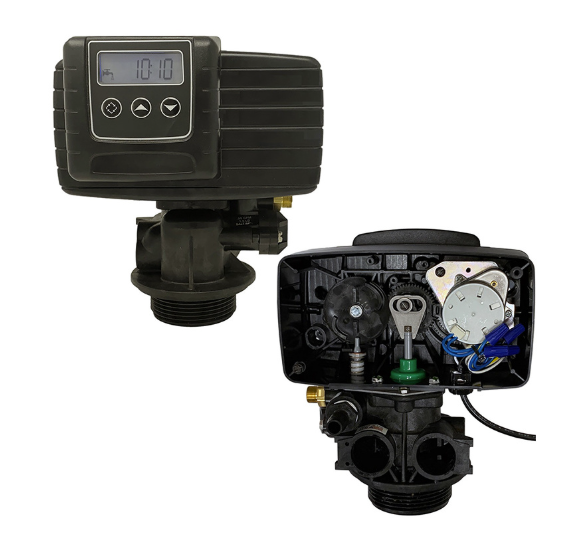

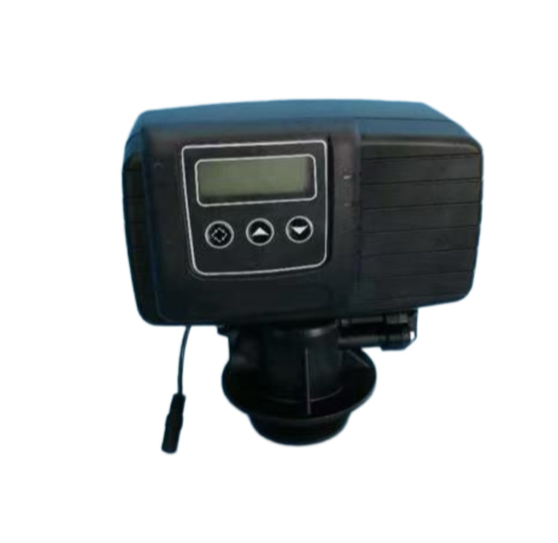

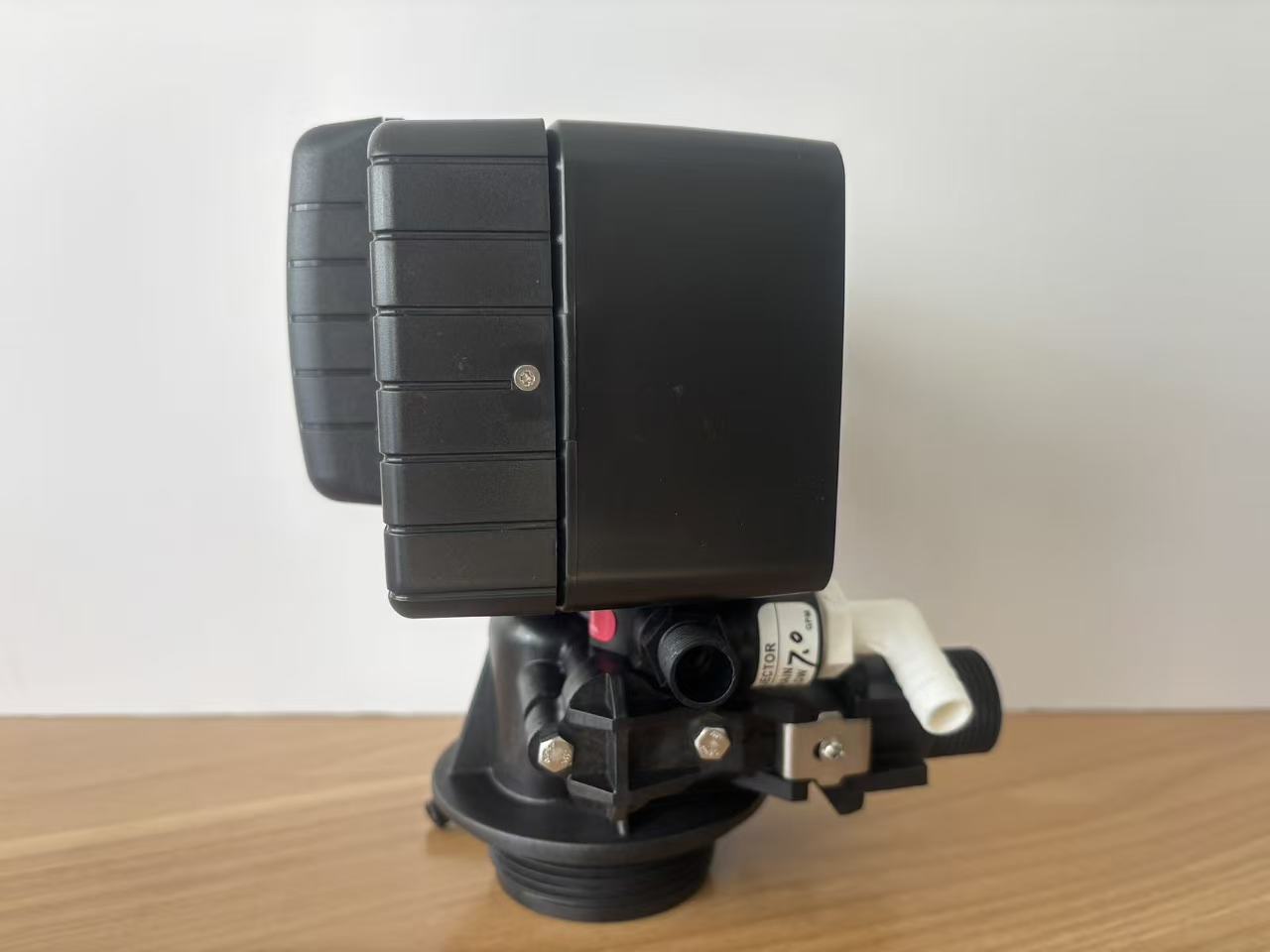

3/4″ Control valve fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant.
LCD display alternates between time of day, volume remaining or days till regen, and tank in service.
Programming stored in memory and will not be lost due to power outages.
Diagnostics for historical valve performance.
Programmable regeneration types for increased flexibility.
Specifications
Continuous Flow Rate @ 15 psi drop:20 gpm;
Max. Backwash flow @ 25 psi drop:7 gpm;
Inlet Outlet Connection Type – Valves:NPT, BSP, SWEA;
Inlet Outlet Size – Valves:3/4″, 1″;
Valve Application:Filter, Water Softener;
REGENERATION
| Downflow/Upflow | Both |
| Adjustable Cycles | Yes |
| Time Available | SXT: 0 – 199 min/cycle |
METER INFORMATION
| Meter Accuracy | 3/4″ Paddle/Turbine: 0.25 – 15 GPM ± 5% (0.06 – 3m3 /h) |
| Meter Capacity Range | SXT: 1 – 999,900 gal (0 – 3,785 m3) |
DIMENSIONS
| Distributor Pilot | 0.8125″ or 1.05″ O.D. (26.7 mm) |
| Drain Line | 1/2″ NPTF |
| Brine Valve | 1600: 3/8″ |
| Injector System | 1600 |
| Mounting Base | 2.5″– 8 NPSM |
| Height from | |
| Top of Tank | 7.5″ (190 mm) |
| Riser Tube Diameter | 3/4″ (19 mm) |
| Riser Height | Flush with top of tank |
TYPICAL APPLICATIONS
| Water Softener | 6 – 12″ diameter |
| Filters | 8 – 10″ diameter (based on 10 GPM/ft2) |
ADDITIONAL INFORMATION
| Electrical Rating | 24V 50/60 Hz |
| Max. VA | 8.4 |
| Estimated Shipping Weight | Time Clock: 6 lbs |
| Metered Valve: 7 lbs | |
| Pressure | Hydrostatic: 300 psi (20 bar ) |
| Working: 20 – 125 psi (1.4 – 8.5 bar) | |
| Temperature | Cold Water Valve: 34 – 110°F (1 – 43°C) |
